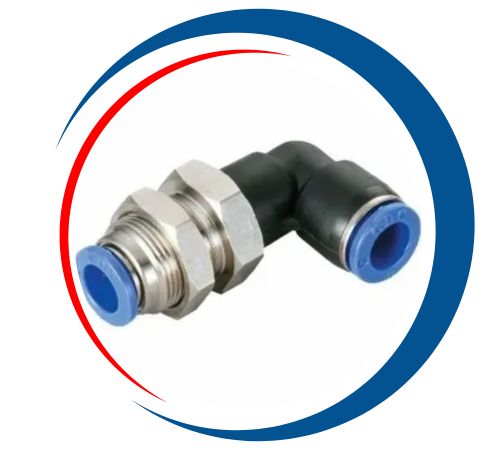

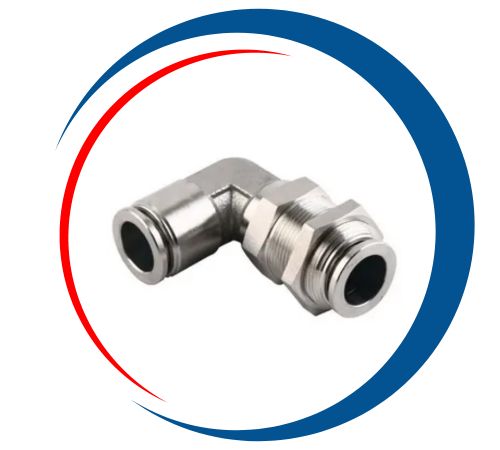

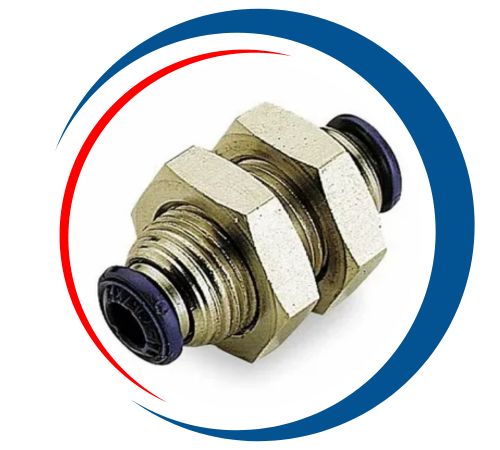

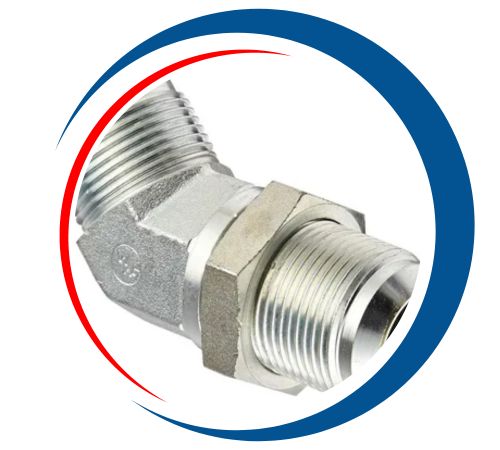

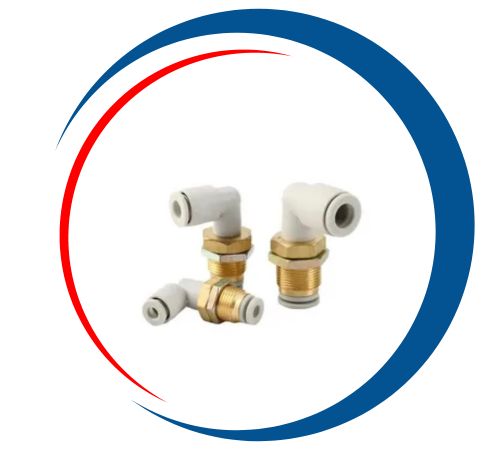

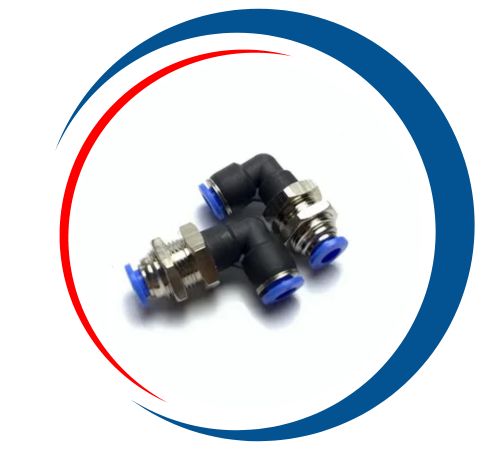

Ayten Tube Fittings, based in Addis Ababa, Ethiopia, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Bulkhead Union Elbows, designed for efficient and dependable tube connections. Known for their precision engineering and advanced manufacturing techniques, Ayten is dedicated to providing durable, leak-proof fittings. Their Bulkhead Union Elbows are expertly designed to facilitate smooth directional flow through panels or walls while ensuring structural integrity and resistance to corrosion. Catering to industries like oil and gas, petrochemical, marine, and power generation, Ayten Tube Fittings delivers trustworthy solutions that adhere to global performance and safety standards.
These Bulkhead Union Elbows are typically crafted from high-quality materials such as stainless steel, brass, carbon steel, or Duplex steel, tailored to meet specific system needs. These materials boast excellent mechanical properties, including impressive tensile strength (up to 850 MPa), strong yield strength, and outstanding corrosion resistance. The fittings are engineered with precision to ensure tight, vibration-resistant connections. Their sturdy design can handle high pressure and temperature fluctuations while maintaining smooth fluid flow and long-lasting durability, making them perfect for demanding industrial and mechanical settings.
| Mcneil part no. | Equivalent Part no. Type 1 | Equivalent part no Type 2 | ODT-ØT(INCHES) | C | BODY HEX F | ODT-ØT1(INCHES) | Ø E | D | L | NUT HEX W | L1 |
| 1-BUD | -100-61 | 1BC1 | 1/16 | 0.43 | 5/16 | 1/16 | 0.05 | 0.34 | 0.84 | 5/16 | 1.24 |
| 2-BUD | -200-61 | 2BC2 | 1/8 | 0.60 | 7/16 | 1/8 | 0.09 | 0.50 | 1.50 | 7/16 | 2.02 |
| 3-BUD | -300-61 | 3BC3 | 3/16 | 0.63 | 9/16 | 3/16 | 0.12 | 0.54 | 1.59 | 7/16 | 2.11 |
| 4-BUD | -400-61 | 4BC4 | 1/4 | 0.70 | 5/8 | 1/4 | 0.19 | 0.60 | 1.03 | 9/16 | 2.27 |
| 5-BUD | -500-61 | 5BC5 | 5/16 | 0.73 | 11/16 | 5/16 | 0.25 | 0.64 | 1.81 | 5/8 | 2.39 |
| 6-BUD | -600-61 | 6BC6 | 3/8 | 0.76 | 3/4 | 3/8 | 0.28 | 0.66 | 1.87 | 11/16 | 2.45 |
| 8-BUD | -810-61 | 8BC8 | 1/2 | 0.86 | 7/8 | 1/2 | 0.41 | 0.90 | 2 | 7/8 | 2.80 |
| 10-BUD | -1010-61 | 10BC10 | 5/8 | 0.86 | 1-1/16 | 5/8 | 0.50 | 0.96 | 2.06 | 1 | 2.86 |
| 12-BUD | -1210-61 | 12BC12 | 3/4 | 0.86 | 1-3/16 | 3/4 | 0.63 | 0.96 | 2.31 | 1-1/8 | 3.11 |
| 14-BUD | -1410-61 | 14BC14 | 7/8 | 0.86 | 1-3/8 | 7/8 | 0.72 | 1.02 | 2.53 | 1-1/4 | 3.33 |
| 16-BUD | -1610-61 | 16BC16 | 1 | 1.04 | 1-5/8 | 1 | 0.88 | 1.23 | 2.81 | 1-1/2 | 3.77 |
At Ayten Tube Fittings, we are the leading supplier, manufacturer, and exporter of Bulkhead Union Elbow in Addis Ababa, Ethiopia. Our state-of-the-art manufacturing facilities, strategically located in the Ethiopia, empower us to provide high-quality solutions tailored to your specific requirements. With an extensive inventory of various premium materials, we are well-equipped to meet your needs efficiently. Our dedication to excellence and operational efficiency ensures we consistently maintain available stock, making us your trusted partner for reliable Union Cross fittings in various applications.
Ayten Tube Fittings is a leading supplier and stockist of premium Bulkhead Union Elbow in Addis Ababa, Ethiopia. Our products are widely utilized across various industries, recognized for their strength, durability, and reliable performance in connecting multiple pipe sections. We are committed to delivering exceptional service and ensuring high levels of customer satisfaction. Our advanced manufacturing techniques set us apart in the fittings industry, enabling us to consistently provide top-quality Union Cross fittings while effectively addressing the unique requirements of our customers.
Contact us to get a quick quote for your requirement.
Bulkhead Union Elbows find extensive use in hydraulic, pneumatic, and instrumentation systems where reliable connections through panels or enclosures are crucial. They are commonly utilized in oil and gas refineries, chemical processing plants, marine engineering, and water treatment facilities. These fittings allow for an efficient 90-degree directional change while ensuring leak-free performance even under high-pressure conditions. Additionally, Bulkhead Union Elbows are employed in power generation, refrigeration, and automotive systems, providing corrosion resistance, easy installation, and a long service life, making them ideal for complex industrial piping and tubing applications.
