904l Ball Valve

Home > 904l Ball Valve

Ayten Tube Fittings, based in Addis Ababa, Ethiopia, stands out as a top manufacturer and supplier of premium 904L Ball Valves. These valves are expertly crafted to offer outstanding corrosion resistance, durability, and precise flow control, making them perfect for tough industrial settings. Designed for leak-free and dependable operation, they thrive under high-pressure and chemically aggressive conditions. With cutting-edge manufacturing techniques and rigorous quality checks, Ayten ensures that their 904L Ball Valves comply with international standards. They cater to various industries, including chemical processing, petrochemical, oil and gas, and power generation, providing robust solutions that prioritize operational safety, long-lasting performance, and efficiency in critical fluid handling systems.

904l Ball Valve Manufacturer In Addis Ababa, SS 904l Ball Valve In Dire Dawa, AISI 904L Ball Valve Gondar, UNS N08904 Ball Valve In Adama. 1.4539 AISI 904L Ball Valve In Jebel Ail, Stainless Steel 904L Ball Valve Supplier In Addis Ababa, Ethiopia.

The 904L Ball Valves are primarily constructed from high-alloy austenitic stainless steel, featuring around 20% chromium, 25% nickel, 4–5% copper, and 1.5–2% molybdenum. This unique blend grants them exceptional mechanical properties, such as a tensile strength ranging from 520 to 700 MPa, impressive yield strength, excellent toughness, and remarkable resistance to pitting, crevice corrosion, and stress corrosion cracking. These attributes guarantee reliable, leak-free performance in highly corrosive and high-pressure industrial applications.

904l Ball Valve Specifications

STANDARD	API 600/BS1414, API 598/BS EN 12266-1, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34
VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE
FUNCTION	2 WAY, 3 WAY, 4 WAY, 5 WAY,
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
SEAL RING MATERIAL	PTFE, PVDF, DELRIN, PEEK, GRAPHITE
STANDARD	ISO , DIN , ANSI , API , ASME , AWWA , MSS ,
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C )RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK
BRAND NAME	TU-LOK
PACKING DETAILS	BOX PACKING, WOODEN PALLET
EQUIVALENT BRANDS	SWAGELOK, PARKER, DK-LOK, HAMLET, OLIVER VALVES, HOKE
APPLICATION	MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE , PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS,

Mechanical Properties Of AISI 904L Ball Valve

Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness Rockwell B (HR B)	Hardness Brinell (HB)
490	220	36	70-90 typical	150

Chemical Composition Standard Of 904L UNS N08904 Ball Valve

C	Mn	Si	P	S	Cr	Mo	Ni	Cu
0.02 Max	2.0 Max	1.0 Max	0.045 Max	0.035 Max	19.0 Min 23.0 Max	4.0 Min 5.0 Max	23.0 Min 28.0 Max	1.0 Min 2.0 Max

Top 904l Ball Valve Manufacturing Company in Addis Ababa

At Ayten Tube Fittings, we are a leading supplier, manufacturer, and exporter of 904l Ball Valve in Addis Ababa, Ethiopia. Our state-of-the-art manufacturing facilities, strategically located in the Ethiopia, enable us to deliver high-quality solutions that meet your specific requirements. With a comprehensive inventory of Monel materials, we are well-equipped to fulfill your needs efficiently. Our commitment to excellence and customer satisfaction ensures that we consistently maintain a ready stock of Monel Manifold Valves to support your operational demands.

Types of 904l Ball Valve

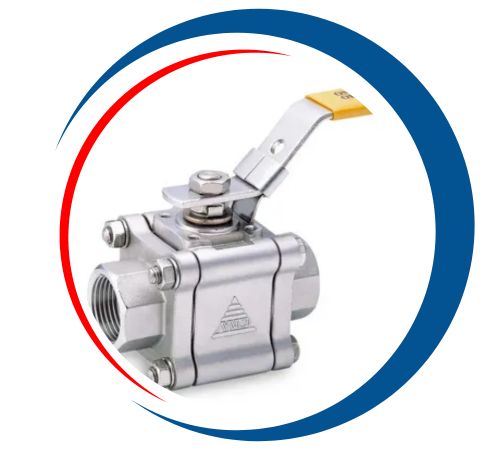

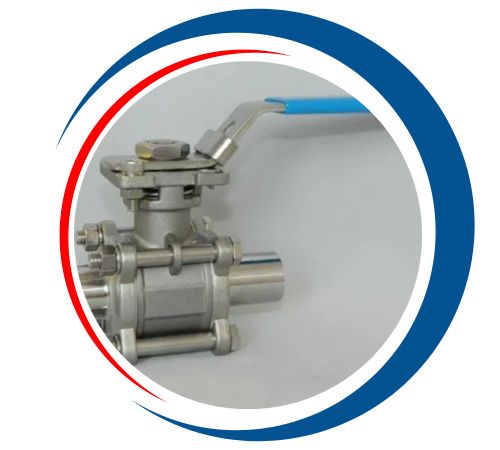

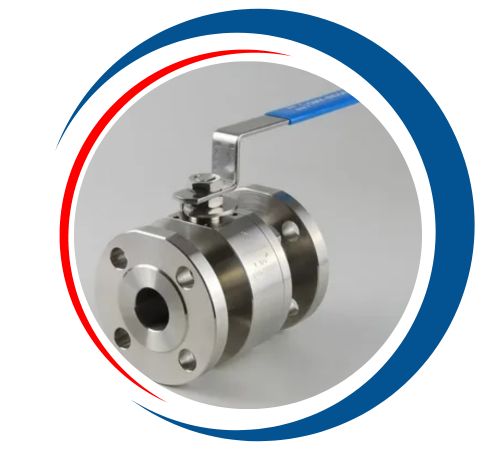

904l High Pressure Ball Valve Manufacturer In Addis Ababa, 904l Instruemntation Ball Valve In Dire Dawa, 904l Panel Mounted Ball Valve Gondar, AISI 904L Ball Valve Adama. 904L UNS N08904 Ball Valve Jebel Ail, 1.4539 AISI 904L Ball Valve Supplier In Addis Ababa, Ethiopia.

Largest Manufacturer and Supplier of 904l Ball Valve in Addis Ababa, Ethiopia

Ayten Tube Fittings is a leading supplier and stockist of premium 904l Ball Valve in Addis Ababa, Ethiopia. Our products find extensive application across diverse industries, and we are dedicated to delivering outstanding service while ensuring high customer satisfaction. Our specialized finishing techniques distinguish us in the metal industry, enhancing the performance and durability of our valves. We are committed to consistently providing top-quality Monel Manifold Valves while effectively addressing the unique needs of our customers.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

904l Ball Valve Uses

You’ll find 904L Ball Valves widely utilized in sectors that demand high corrosion resistance and dependable flow control in challenging environments. They are commonly found in chemical processing plants, petrochemical refineries, oil and gas pipelines, and power generation facilities. Additionally, these valves are well-suited for marine applications, seawater desalination, and pharmaceutical settings, where resistance to harsh chemicals and long-term durability are crucial. With their efficient, leak-proof operation, minimal maintenance needs, and extended service life, 904L Ball Valves are essential components for safe and reliable fluid and gas management in industrial systems.
